Danny  Alfredo  Rodriguez
CASE STUDY

Crosswordia

View GitHub

A full-stack web application that allows users to create, solve, and share crossword puzzles. The platform features an intuitive interface for designing custom crosswords of various sizes, a gallery of pre-made puzzles categorized by difficulty level, and user authentication for saving and tracking created puzzles.

TIMELINE

2022

ROLE

Full-Stack Developer

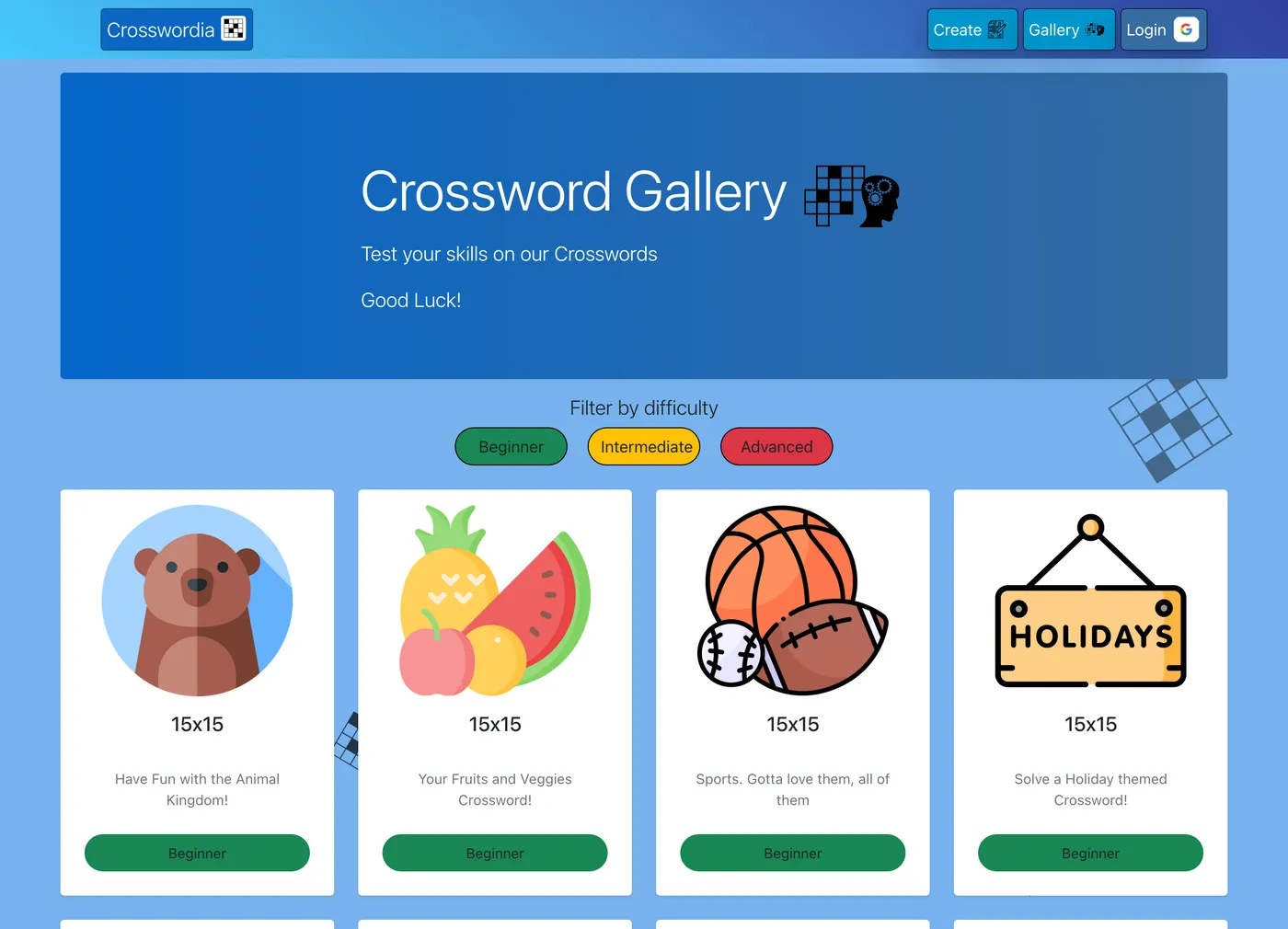

Crosswordia application screenshot

Technical Stack

Frontend

  • HTML, CSS, JavaScript
  • Simple Keyboard for virtual keyboard input
  • Dictionary API integration for word suggestions

Backend

  • Node.js, Express.js
  • MongoDB with Mongoose ODM
  • Passport.js with Google OAuth
  • Handlebars (express-handlebars)

Architecture

Backend Architecture

The application follows an MVC-like architecture:

  • Models: MongoDB schemas for Users and Crosswords
  • Routes: Express routes handling different application features
  • Views: Handlebars templates for rendering pages
  • Middleware: Authentication and session management

Database Schema

The application uses two main data models:

User Model

  • Google authentication details
  • Profile information (name, image)
  • Creation timestamp

Crossword Model

  • Puzzle metadata (name, size)
  • Solution data
  • Hints/clues organized by direction and position
  • Creator reference (user ID)
  • Creation timestamp

Key Features

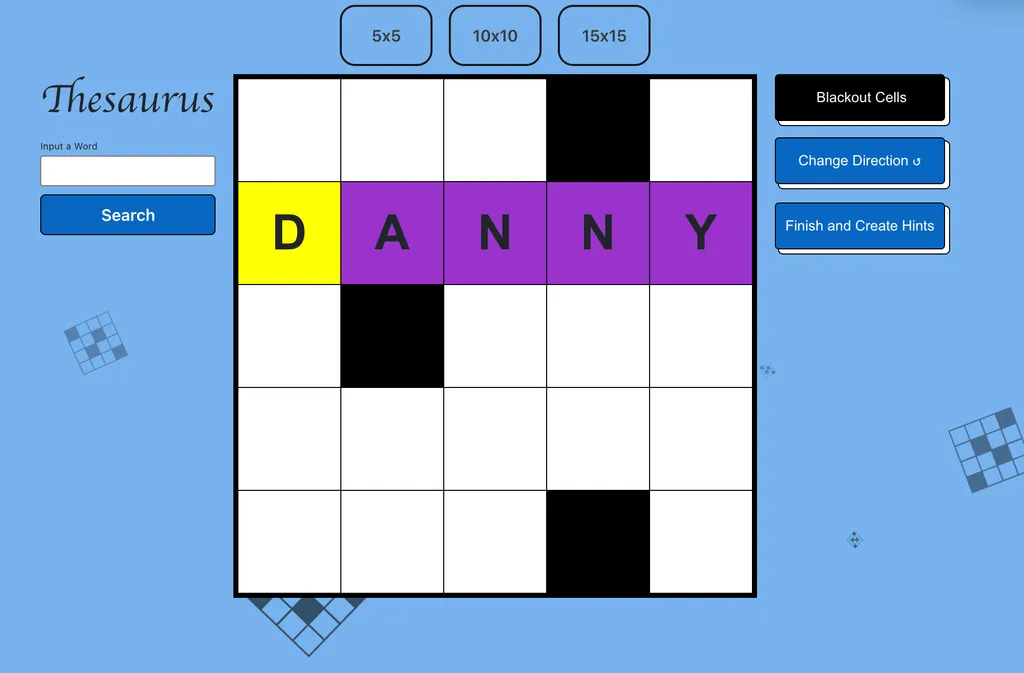

1. Crossword Creation Interface

The creation interface (create.js) provides a dynamic grid-based editor with the following features:

  • Multiple grid size options (5x5, 10x10, 15x15)
  • Toggle between "blackout cells" and "typing" modes
  • Automatic highlighting of active word direction (across/down)
  • Hint/clue management system
  • Thesaurus integration for word suggestions
  • Virtual keyboard support for mobile devices

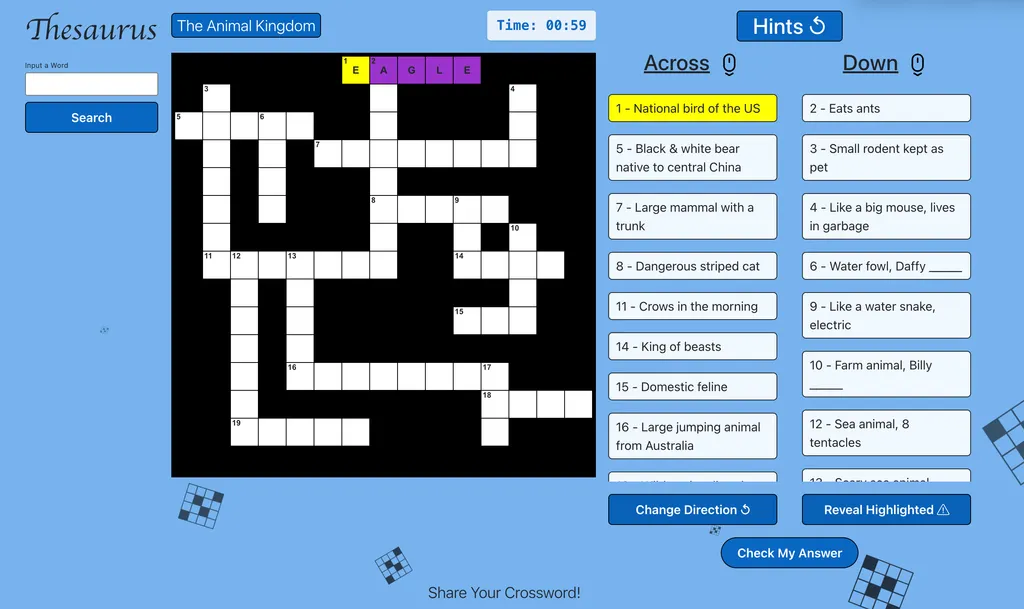

2. Solving Experience

The solving interface (solve.js) offers:

  • Interactive grid with automatic word selection
  • Synchronized hint highlighting
  • Mobile-friendly design with virtual keyboard
  • Visual feedback for correct/incorrect answers
  • Celebration animation upon puzzle completion

3. User Dashboard

Users can:

  • View all their created puzzles
  • Access puzzle statistics
  • Delete their puzzles
  • Share puzzles via unique links

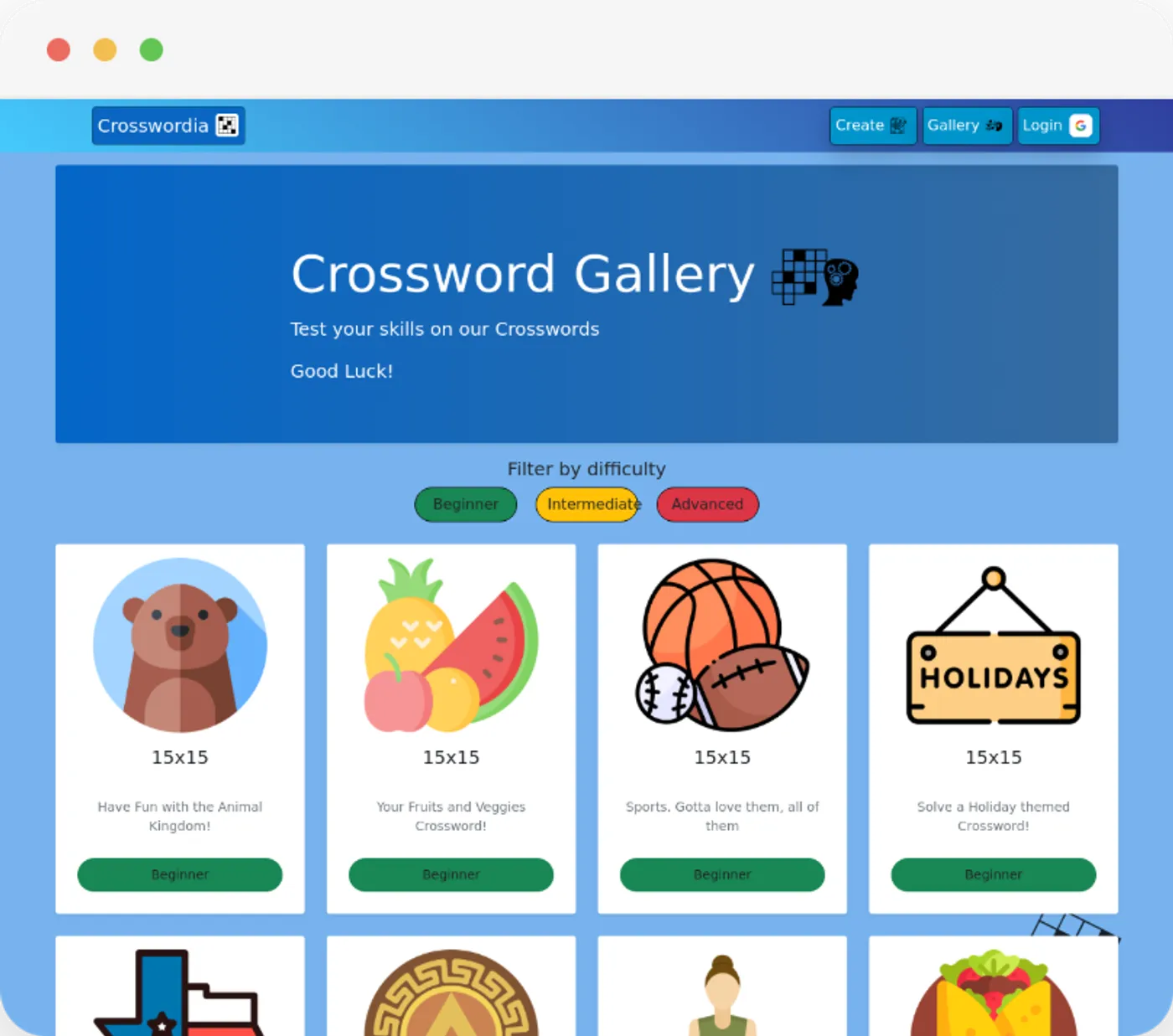

4. Gallery

The gallery showcases puzzles with:

  • Difficulty filtering (Beginner, Intermediate, Advanced)
  • Thematic categorization with visual icons
  • Size indicators
  • Preview descriptions

Technical Challenges & Solutions

Challenge 1: Grid Interaction Logic

Creating an intuitive grid interaction system that handles both creation and solving modes required complex event handling. The solution involved:

  • Custom event listeners for cell selection
  • Direction toggling with visual indicators
  • Automatic word highlighting based on cell position
  • Keyboard navigation between cells

Challenge 2: Puzzle Data Structure

Designing a data structure to efficiently store and retrieve puzzle information required careful consideration. The solution uses:

  • A string-based solution grid representation
  • A structured object for hints organized by direction and position
  • Cell ID mapping for connecting grid positions to hints

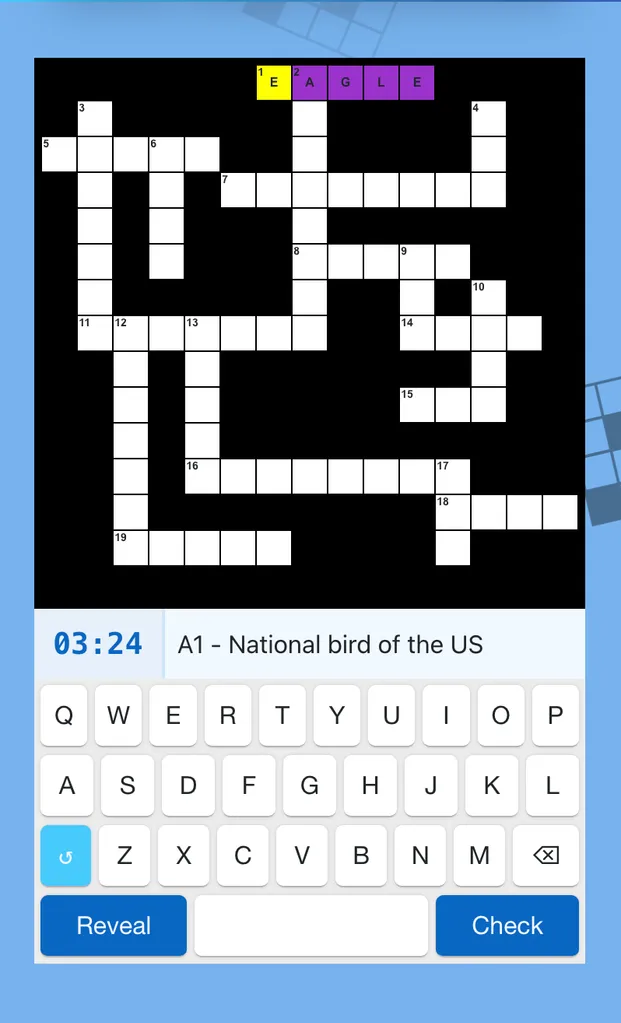

Challenge 3: Mobile Responsiveness

Making the crossword grid usable on mobile devices presented unique challenges:

  • Implementation of a virtual keyboard
  • Touch-friendly cell selection
  • Responsive grid sizing based on device dimensions
  • Mobile-optimized hint display

Development Process

The application was built using modern web development practices:

  • Server Setup: Express.js with middleware configuration
  • Authentication: Google OAuth implementation with Passport.js
  • Database Integration: MongoDB connection with Mongoose schemas
  • Frontend Development: Interactive grid implementation with vanilla JavaScript
  • User Experience: Responsive design with intuitive controls

Conclusion

Crosswordia demonstrates effective full-stack development practices by combining:

  • Clean, modular JavaScript code
  • Intuitive user interface design
  • Secure authentication
  • Efficient database modeling
  • Responsive web design principles

The application successfully delivers an engaging platform for crossword enthusiasts to create, solve, and share puzzles across devices.
